A Client Server File Sharing Application



This blog post is a client/server file sharing or transfer application in C#, the application is made up of two projects, it can be tested on a single computer but, its capability will be best seen if tested on two computers, one running as a client while the other is a server.

Before we dive into coding, its essential to understand Socket which is the most important aspect of network programming.

Socket is an object that represents a low level access point to the Internet Protocol(IP) stack, it is used to send and receive data, thus it can be opened and closed, the data to be sent is  always sent in block known as Packet.

Packets must contain the IP address of both the source of the packets and the destination computer where the data is being sent, and optionally it may contain a Port number. A port number is between 1 and 65,535. A port is a communication channel or endpoints on which computers can communicate. It is always recommended that programs use port number higher than 1024 to avoid conflicts with other applications running on the system, because no two applications can use the same port.

Packets containing port numbers can be sent using UDP(User Datagram Protocol) or TCP/IP(Transmission control protocol). UDP is easier to use than TCP because TCP is more complex and has longer latencies, but when the integrity of the data to be transferred is more important than performance, then TCP is prefered to UDP, and thus for our file sharing application TCP/IP will be used because it guarantees that our file does not become corrupt while being transfered and if during the transmission process a packet is loss, it is retransmitted thus making sure that our file integrity is maintained.

Thus, this application will allow you to send any file from one computer to another, personally I have used it to send a 350mb file from one desktop PC to another.

Now to get started, create two new windows forms applications one named FileSharingServer and the other FileSharingClient.

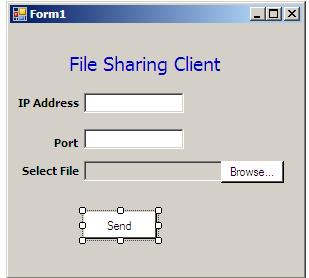

Now, for the FileSharingClient windows form application add three textboxes and two buttons to the form just like the screen below.

filesharingclient

Rename the textboxes and buttons appropriately.
This is the code for the file sharing client application

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Threading.Tasks;
using System.Net;
using System.Net.Sockets;
using System.Net.NetworkInformation;
using System.IO;

namespace FileSharingClient
{
    public partial class Form1 : Form
    {
        private static string shortFileName = "";
        private static string fileName = "";
        public Form1()
        {
            InitializeComponent();
        }

        private void btnBrowse_Click(object sender, EventArgs e)
        {
            OpenFileDialog dlg = new OpenFileDialog();
            dlg.Title = "File Sharing Client";
            dlg.ShowDialog();
            txtFile.Text = dlg.FileName;
            fileName = dlg.FileName;
            shortFileName = dlg.SafeFileName;
        }

        private void btnSend_Click(object sender, EventArgs e)
        {
            string ipAddress = txtIPAddress.Text;
            int port = int.Parse(txtHost.Text);
            string fileName = txtFile.Text;
            Task.Factory.StartNew(() => SendFile(ipAddress,port,

             fileName,shortFileName));
            MessageBox.Show("File Sent");
        }

        public void SendFile(string remoteHostIP, int remoteHostPort

           , string  longFileName, string shortFileName)
        {
         try
         {
          if(!string.IsNullOrEmpty(remoteHostIP))
            {
             byte[] fileNameByte = Encoding.ASCII.GetBytes

             (shortFileName);
             byte[] fileData = File.ReadAllBytes(longFileName);
             byte[] clientData = new byte[4 + fileNameByte.Length

                + fileData.Length];
             byte[] fileNameLen = BitConverter.GetBytes(

              fileNameByte.Length);
             fileNameLen.CopyTo(clientData, 0);
             fileNameByte.CopyTo(clientData, 4);
             fileData.CopyTo(clientData, 4 + fileNameByte.Length);
             TcpClient clientSocket = new TcpClient(remoteHostIP,

              remoteHostPort);
             NetworkStream networkStream = clientSocket.GetStream();
             networkStream.Write(clientData, 0, clientData.GetLength

              (0));
             networkStream.Close();
           }
         }
         catch
         {

         }
        }
    }
}



Note the following namespaces were added to the windows form application

    System.Threading.Tasks;
the namespace above is used to include the .Net Parallel computing classes

   System.Net;
   System.Net.Sockets;
   System.Net.NetworkInformation;

the three namespaces  above contain the .Net classes used for Network programming

    System.IO;
the namespace above contains classes used for file operations

When the browse button is clicked an object of OpenFileDialog is created to open a dialog to get the file name of the file to be sent. When the send button is clicked, the SendFile method is called and handled in parallel so that the main form user interface does not get frozen while the file is being sent and the processors are fully utilized in a multi-core environment.

The SendFile method accepts IP address and port number of the destination computer as well as the file path and file name. Both the file name and the file are converted to bytes and sent to the destination computer using the TCPCLient and NetworkStream classes object created.

The user interface of the file sharing client application is shown below when run.

filesharingclient2


The source code for the server is


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Net;
using System.Net.Sockets;
using System.Net.NetworkInformation;
using System.IO;
using System.Threading.Tasks;

namespace FileSharingServer
{
    public partial class Form1 : Form
    {

        public delegate void FileRecievedEventHandler(object source,

          string fileName);

        public event FileRecievedEventHandler NewFileRecieved;

        public Form1()
        {
            InitializeComponent();
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            this.NewFileRecieved+=new FileRecievedEventHandler
            (Form1_NewFileRecieved);
        }

        private void Form1_NewFileRecieved(object sender, string
         fileName)
        {
            this.BeginInvoke(
            new Action(
            delegate()
            {
                MessageBox.Show("New File Recieved\n"+fileName);
                System.Diagnostics.Process.Start("explorer", @"c:\");
            }));
        }

        private void btnListen_Click(object sender, EventArgs e)
        {
            int port = int.Parse(txtHost.Text);
            Task.Factory.StartNew(() => HandleIncomingFile(port));
            MessageBox.Show("Listening on port"+port);
        }

        public void HandleIncomingFile(int port)
        {
          try
            {
                TcpListener tcpListener = new TcpListener(port);
                tcpListener.Start();
                while (true)
                {
                  Socket handlerSocket = tcpListener.AcceptSocket();
                    if (handlerSocket.Connected)
                    {
                     string fileName = string.Empty;
                     NetworkStream networkStream = new NetworkStream

                      (handlerSocket);
                     int thisRead = 0;
                     int blockSize = 1024;
                     Byte[] dataByte = new Byte[blockSize];
                     lock (this)
                     {
                      string folderPath = @"c:\";
                      handlerSocket.Receive(dataByte);
                      int fileNameLen = BitConverter.ToInt32(dataByte,

                       0);
                      fileName = Encoding.ASCII.GetString(dataByte, 4,

                       fileNameLen);
                      Stream fileStream = File.OpenWrite(folderPath +

                       fileName);
                      fileStream.Write(dataByte, 4+fileNameLen,(

                       1024-(4+fileNameLen)));
                      while (true)
                      {
                       thisRead = networkStream.Read(dataByte, 0,

                        blockSize);
                       fileStream.Write(dataByte, 0,thisRead);
                       if (thisRead == 0)
                        break;
                      }
                      fileStream.Close();

                    }
                    if (NewFileRecieved != null)
                     {
                       NewFileRecieved(this, fileName);
                     }
                    handlerSocket = null;
                    }
                }

            }
            catch
            {

            }
        }
    }
}





 filesharingserver filesharingserver2

At the file sharing server application, a port number is supplied, on which the server will be listening to an income file to be recieved.

Just like the file sharing client application, the start listening button when clicked, invokes the HandleIncomingFile method in parallel. A TcpListener object is created to start listening for incoming file at the specified port, when a connection is received the  a file with the same name as the file sent from the client is reconstructed from the received bytes and saved to the C drive and then an event is fired to indicate on the server user interface that a new file has been received.

When the event is fired, all subscribers to the event are notified and in this case the event handler method Form1_NewFileRecieved is invoked and the code to display a message box and open the folder containing the file received is  wrapped around  the form BeginInvoke method to avoid thread errors.

The Complete source code of the two applications is available for download Here
